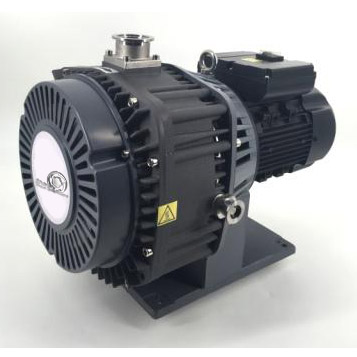

JF600SP

Features and Benefits:

1.Wide product lineup

2.Suitable for any type of power supply around the world

3.No oil back-diffusion or exhaust

4.Can be repeatedly continuous operated between atmospheric and vacuum

5.Low vibration, low noise and high efficiency

6.Ease of maintenance


Description
Applications
1.Sputtering equipment, vacuum deposition equipment, ion plating equipment
2.Surface modification, electron beam process
3.Vacuum furnace, vacuum heat treatment furnace
4.Gas circulation and recovery devices
5.Laboratory experiments and analyzers
6.Accelerator
7.Vacuum Pump system
8.He leak detector
9.Vacuum packaging machine
10.Vacuum vacuum chuck

Model

JF150SP

JF300SP

JF600SP

Displacement

50Hz

l/s

2.0

4.3

8.7

l/min

120.0

258.0

522.0

m3/h

7.2

15.5

31.3

cfm

4.3

9.3

18.7

60Hz

l/s

2.4

5.1

10.4

l/min

144.0

306.0

624.0

m3/h

8.6

18.3

37.4

cfm

5.1

10.9

22.3

Ultimate Pressure

Pa

≤8.0

≤2.6

≤1.0

Torr

≤6.0×10-2

≤1.9×10-2

≤7.5×10-3

mbar

≤8.0×10-2

≤2.6×10-2

≤1.0×10-2

psi

≤1.2×10-3

≤3.8×10-4

≤1.4×10-4

Noise Level

dB(A)

≤57

≤61

≤63

Leakage

1×10-5Pa·m3·s-1(1×10-6mbar·l·s-1)

Max. Inlet/Exhaust Pressure

MPa

0.1 / 0.13

Ambient Operation Temp.

℉/℃

41~104 / 5~40

Max. Water Treatment

G/h

50

60

Motor
1 phase

Motor Power

kW

0.25

0.55

0.75

Operating Voltage

VAC

50~60Hz/110~115:200~230

Speed

RPM

50Hz /1425; 60Hz /1725

Power Code



North America, Europe, UK/Ireland, India

Motor
3 phase

Motor Power

kW

0.25

0.55

0.75

Operating Voltage

VAC

50 Hz/200~230:380~415; 60 Hz/200~230:460

Speed

RPM

50Hz /1425; 60Hz /1725

Inlet/Exhaust Flange



KF25/16

KF25/16

KF40/16

Dimensions

mm

430x250x280

492x268x324

530x312x343

Packing Dimension

mm

550x400x420

650x450x480

650x450x480

Net Weight

kg

18

32

38

Gross Weight

kg

27

42

50

Cooling Type

Air cooled

Others

With air flush
